Safety First: How DSI Underground and X-Pak Global Ensure Safe Transportation by Road and Sea
As Australia’s largest manufacturer and supplier of specialist strata reinforcement and support products to the underground coal and metalliferous mining sectors, DSI Underground faces the critical challenge of ensuring the safe transportation of their extremely large and substantial goods when transporting across Australia and exporting internationally.
Understanding the Challenge
With heavy loads traversing Australian roads, the risk to safety is a primary concern for DSI. To address this challenge, DSI partnered with X-Pak Global, leveraging their expertise in load restraint solutions.
Load details

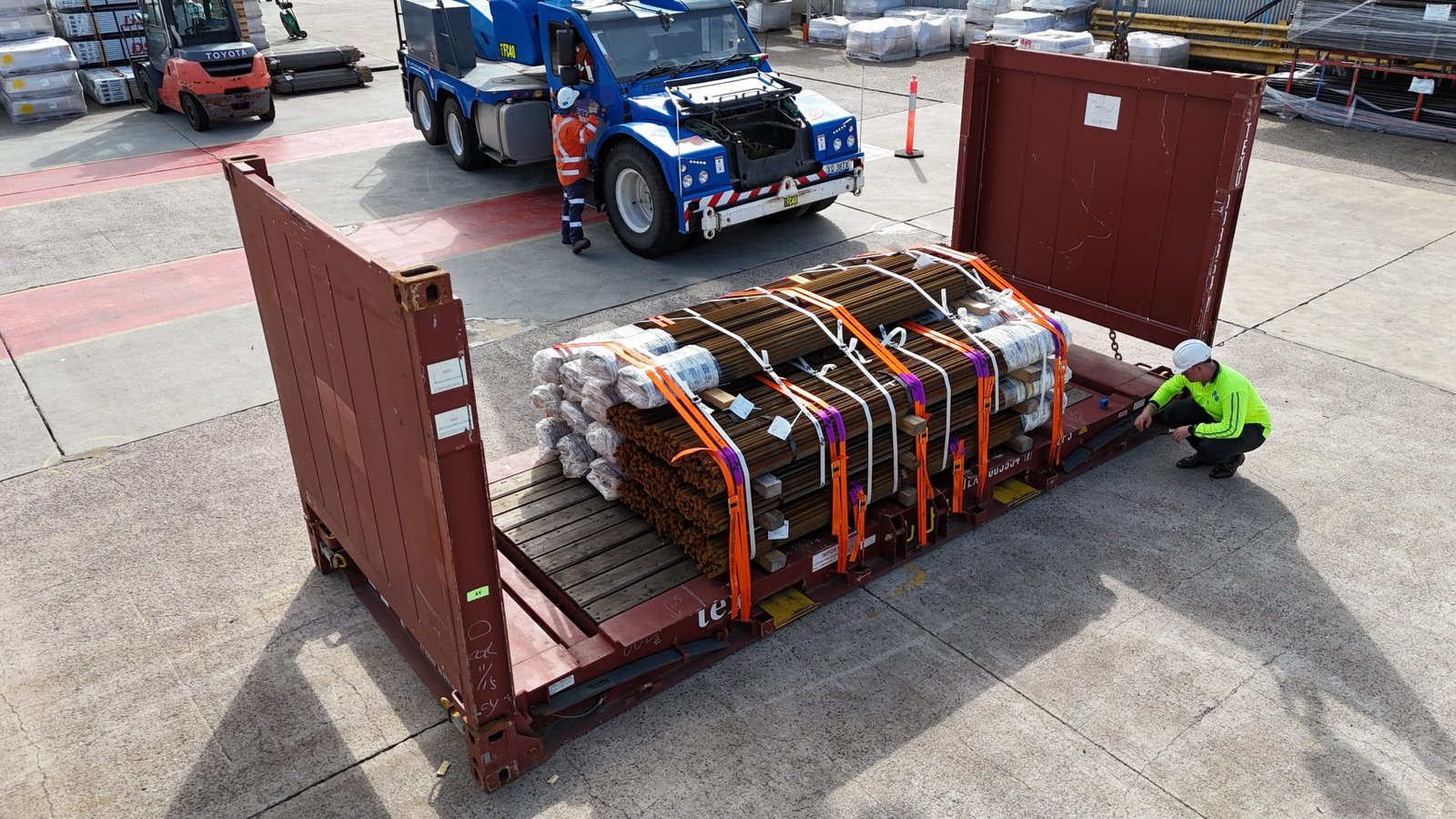

- Materials to secure: Steel Mining Bolts
- Weight: Up to 25 tonnes
- Mode of transport: Flat Rack, Truck & Vessel
The Task: Testing with X-Pak
X-Pak attended DSI’s Newcastle site to conduct comprehensive on-site testing to evaluate the effectiveness of DSI’s existing securement methods against the standards outlined in the Australian Load Restraint Guide 2018.

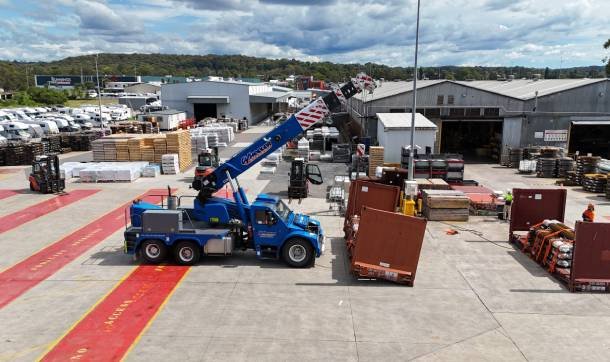

The testing process was extensive, with DSI arranging for a crane to tilt the fully loaded flat rack to specific angles to simulate real-world conditions.
Performance Standards

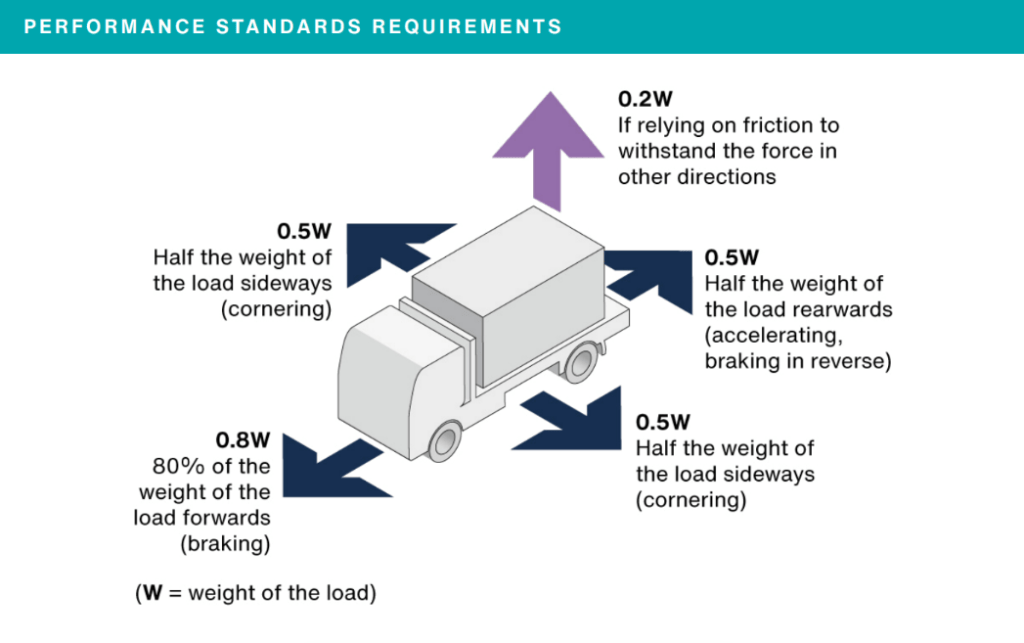

The National Heavy Vehicle Regulator Load Restraint Guide sets out the minimum amount of force a restraint system must be able to withstand in each direction. The load on a heavy vehicle must:
- Be secured so it is unlikely to fall or be dislodged
- Be restrained using an appropriate method.
- Be placed, secured or restrained in a way that meets the Performance Standards.
Tilt Test Requirements:
All loads were tested to meet the following:

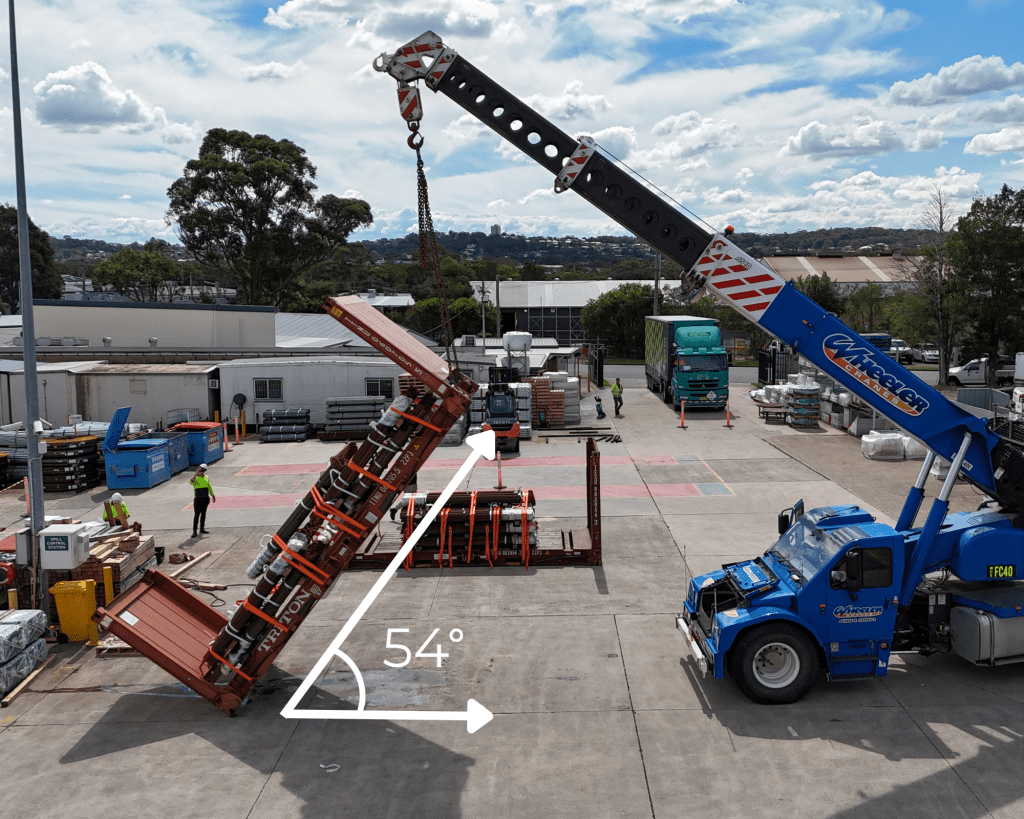

- 54 degrees lengthways with no load shift to meet the required 0.8G in the forward (driving) direction.

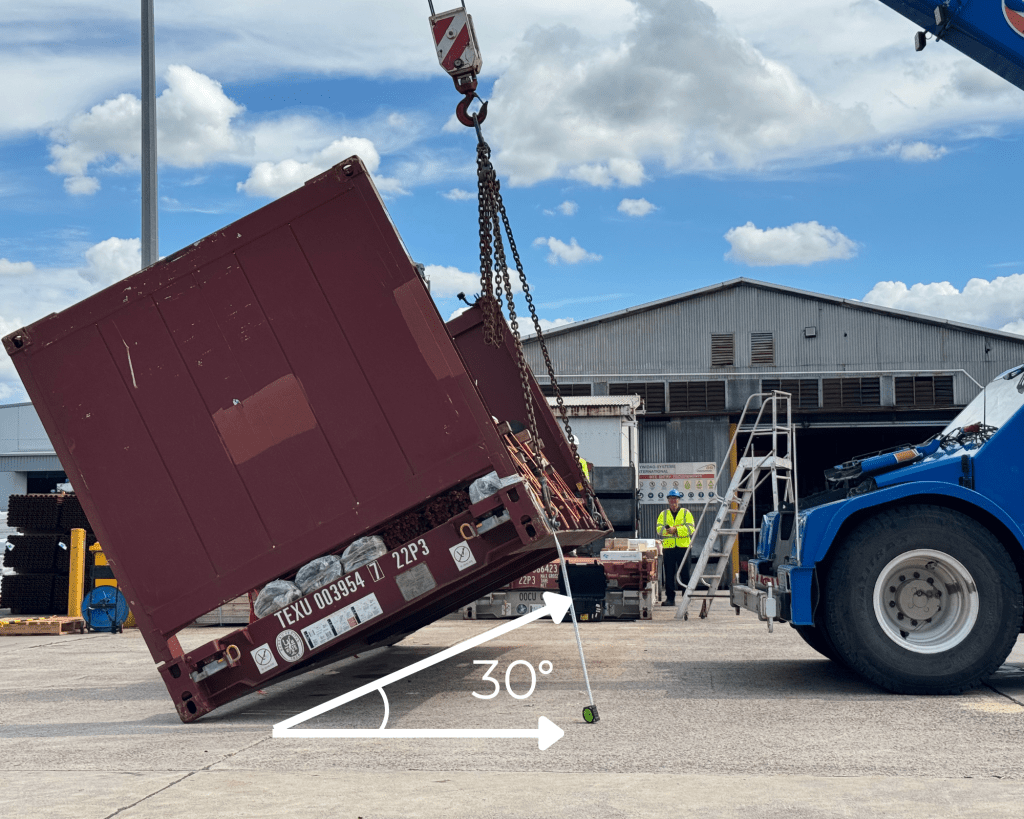

- 30 degrees sideways with no load shift to meet the required 0.5G for side-to-side movement.
Customised Load Restraint Solutions
Major Benefits
- Safety first: Non-compliant restraints of heavy loads pose significant risks on the roads, emphasising the importance of investing in quality advice, onsite training, and practical demonstrations to safeguard lives and assets.
- Compliance: Ensuring regulatory adherence, mitigating legal risks and fostering trust with stakeholders.
- Cost-effective solution: Investing in quality load restraints for larger loads is more economical than splitting loads into smaller weights and transporting more frequent shipments.
- Reputation: Prioritising safety and compliance not only mitigates risks but also enhances company efficiency and reputation.
Commitment to Excellence
DSI Underground’s partnership with X-Pak Global exemplifies their dedication to excellence in safety and operational efficiency. By leveraging X-Pak’s custom load restraint solutions, DSI continues to set the standard for safety in the transportation of heavy goods, both domestically and internationally.
Safety isn’t just a priority—it’s a fundamental value shared by DSI Underground and X-Pak Global, driving innovation and excellence every step of the way.
“Thanks Trent and team for your help, skill and knowledge. Was a great result.”
Find Your Solution With X-Pak
X-Pak Global is dedicated to delivering innovative solutions that prioritise safety and efficiency.
For further information on our comprehensive solutions, featuring lashing, anti-slip mats, and other industry-leading load restraints, contact us at 1300 551 281.
Our team will provide on-site consultations at no charge, offering expert advice and training tailored to ensure the secure and safe transport of your goods.
